Raised access floors CBI Europe, Hybrid Calcium Sulphate + Woodcore Panel Semi-Encapsulated Steel
Raised access floors CBI Europe, Hybrid Calcium Sulphate + Woodcore Panel Semi-Encapsulated Steel
from 1830.00 uah/m2
Technical Specifications

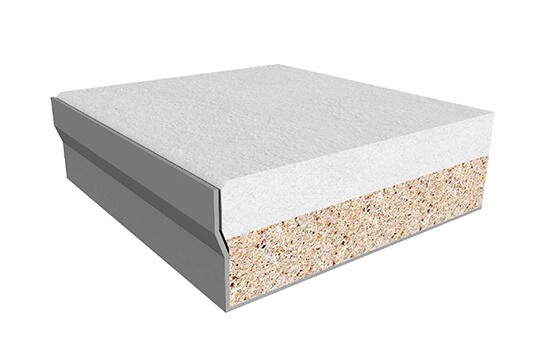

Description: high density panels made by combination of woodcore and calcium sulphate, coated all the way up to the upper edge, with 0.5 mm of galvanised steel. They are designed to combine the reduced thickness of 28 mm (therefore optimising transport and handling during construction), with a highest load bearing resistance of the floor itself
Material: high density calcium sulphate 1200 kg/m3 and high density chipboard - 700 kg/m3
Sizes and weight: CBI-HYBRID 600х600х28mm (11,10 kg/pc)
Fire resistance REI: 30 мин

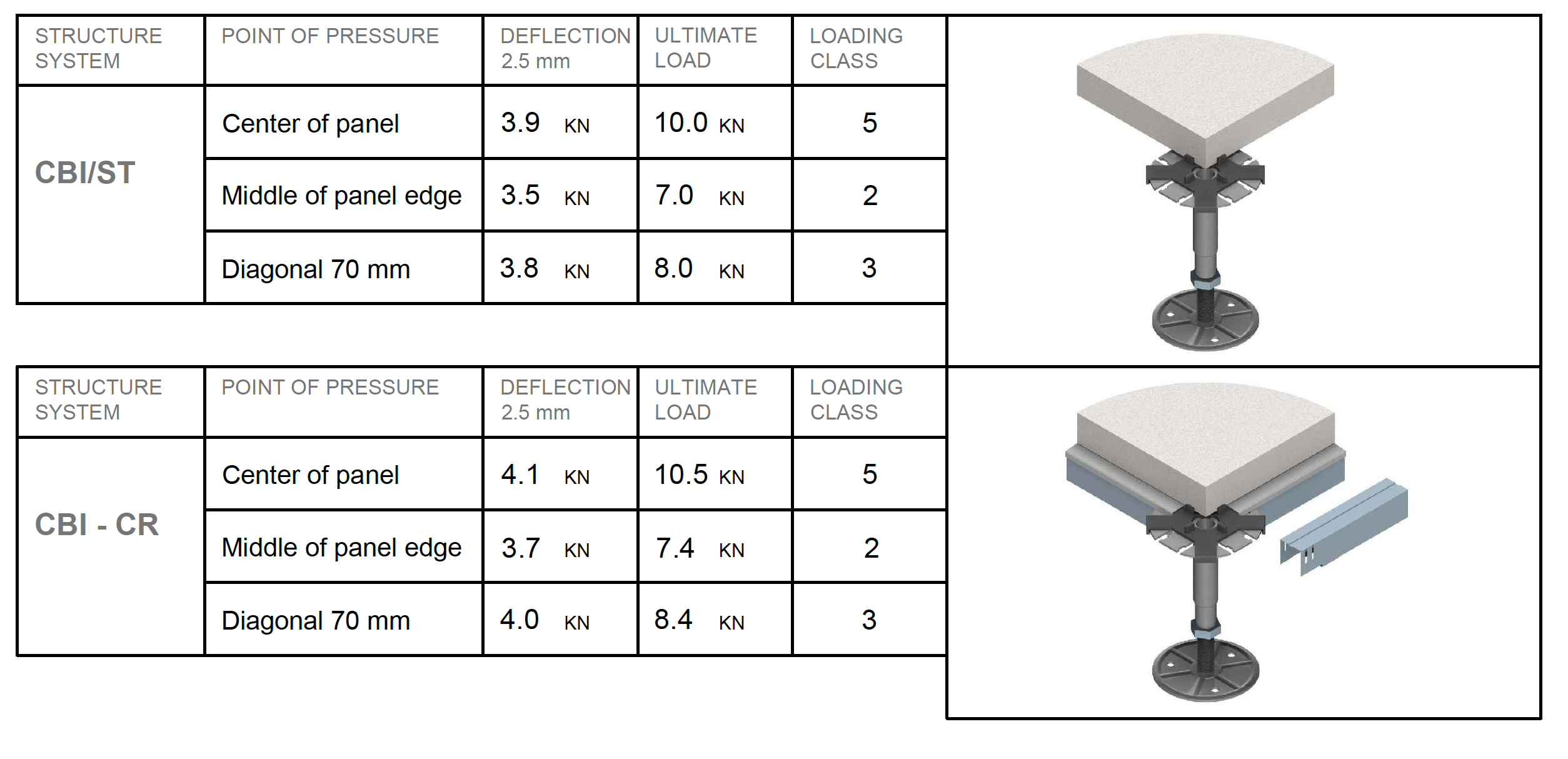

Deflection 2,5мм (center of panel): 3,5-3,7KN (depends on bearing system)
Ultimate load (center of panel): 10,0-10,5 KN (depends on bearing system)
Loading class: 2 - 5
Country of origin: Italy
